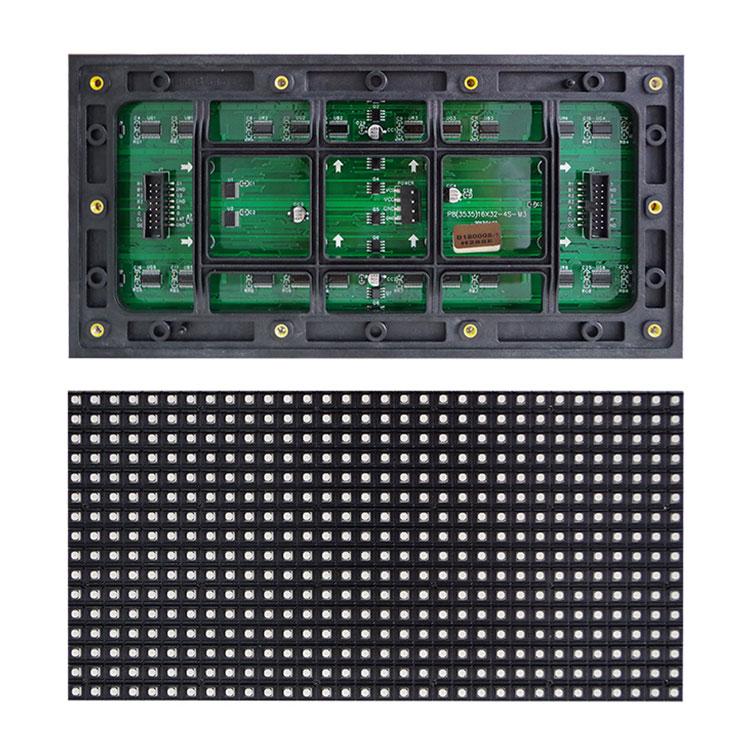

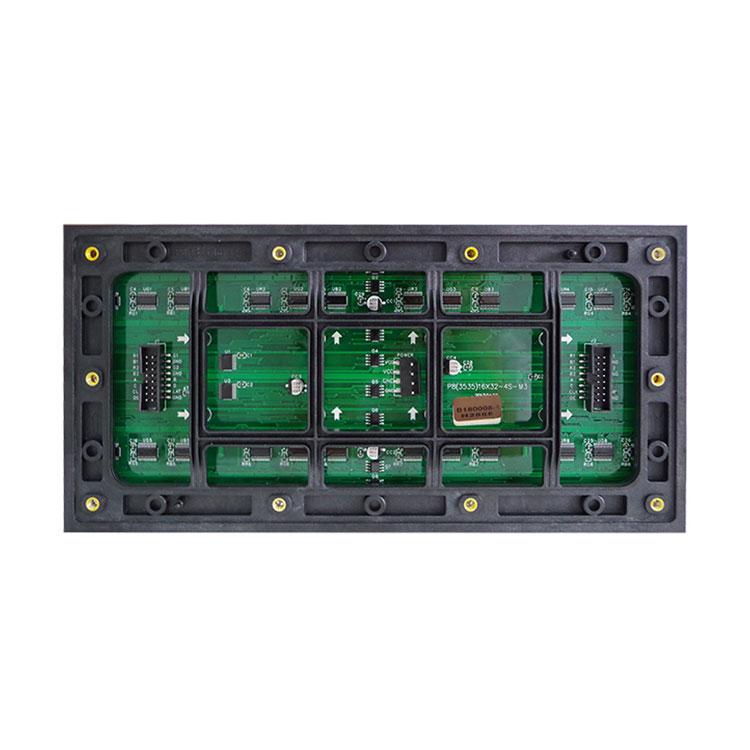

P8 Outdoor SMD HD full color LED Modul
Tehnologija dinamičkog skeniranja obezbeđuje čistu i stabilnu slike. Precizan prikaz efekta raznolikih animacija. Kućište je napravljeno od legure aluminijuma, tako da je mnogo lakši i bolji sistem za odvođenje toplote. LED panel može prikazivati tekst, slike, animacije, kao i video uz kontinuirani rad od 24h.
P8 spoljni SMD LED modul namenjen je spoljnom oglašavanju i apsolutno je vodootporan. Visoka rezolucija, osvetljenost i uniformnost boja odlika je ovog LED modula. Sa 62500 tačaka po kvadratnom metru spoljnog LED displeja u boji. Siva skala u okviru od 65.536 koraka, i ukupno 16.777.216 vrsti boja.
Product details:
- Pixel pitch (razmak piksela): 4mm
- Pixel configuration (konfiguracija piksela): R：G：B=3：6：1
- LED lamp (tip led lampe): Full color
- LED density (gustina): 62500 dot/m2
- Module size (dimenzije modula): 256*128mm
- Module pixel (rezolucija modula): 64*32=2048dot
Detaljna specifikacija proizvoda
- Pixel Pitch: 4mm
- Pixel Configuration: R：G：B=3：6：1
- LED Lamp: Full color
- Density: 62500 dot/m2
- Module Size: 256*128mm
- Module Pixel: 64*32=2048dot
- Module Thickness: 17mm
- Module Weight: 296g
- Module Power: ≤29.5W
- Drive Voltage: DC5V
- Module Electric Current: 5.9A
- Port Type: HUB-75D/B
- Color Temperature: 10047
Karakteristike i parametri ekrana
- Standard Cabinet Size: die-casting aluminum cabinet 768mm*768mm*77mm, Waterproof Iron Cabinet1024*1024*120mm
- Cabinet Weight 8KG/45KG
- Brightness/Adjustment: ≥5500cd/m²，Level 16- Automatic / Level 100-Manual operation
- View Angle: ≥140°（Horizontal），≥120°（Vertical）
- Best View Distance: 8-100m
- Grey Scale: Within 65536 Step
- Frame Frequency: ≥60Hz
- Refresh Rate: ≥3840Hz
- Signal Input Source: Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI
- Scan Mode: 1/4 Scan
- Drive IC: 2153
- Module Qty/m2: 30.5
- Display Color Qty: 16777216
- Continuous Working Time: >24（Hrs）
- Screen Lifespan: >100,000（Hrs）
- MTBF: >5000（Hrs）
- Max. power consumption: 900W/㎡
- Ave. power consumption: 300W/㎡
- Out of control pixel rate: ≤3/10,000(discrete distribution)
- Control Distance: 100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)
- Flatness Screen Surface: ≤0.5mm，Pixel Pitch≤0.3mm
- Operation Temperature: -10℃～+50℃
- Working Humidity: 10%～98%RH
- Storage Temperature: -20℃～+60℃
- Software Connection: Standard Computer Connection, Compatible With Windows、Unix、Novell
- Protection system: Over temperature/overload/power/image compensation/nonlinear correction
- Working Voltage: 200~240 V
- Dielectric Strength: 50HZ/1500V（AC RMS）/1min
- Temperature Rise: Metal≤40K，Insulation≤65K , After Heat Balance
- IP Grade: IP65
- Computer display mode: 1024*768
- Media Player: LED Professional Media Player
