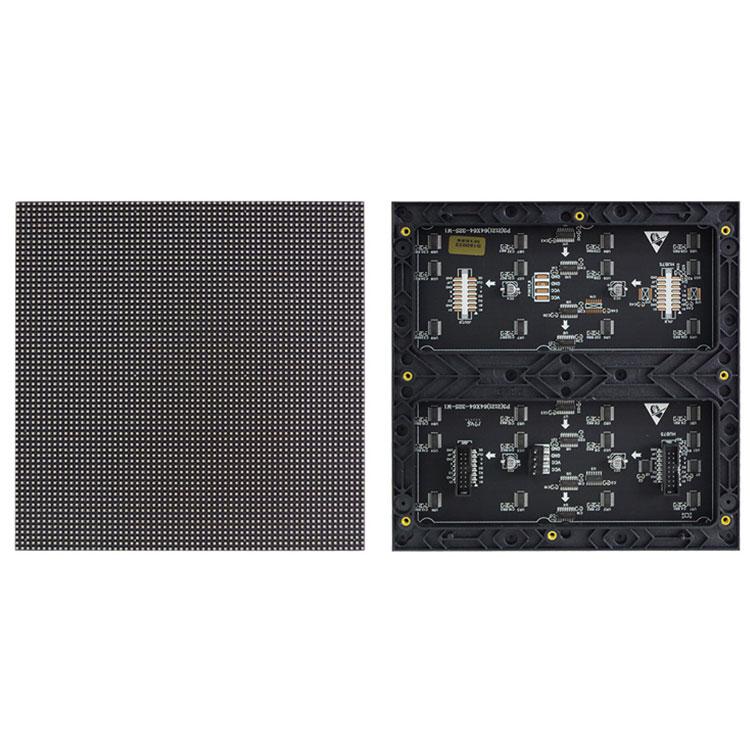

P3 Indoor HD full color LED Modul
P3 unutrašnji LED modul namenjen je oglašavanju u zatvorenom prostoru. Visoka rezolucija, osvetljenost i uniformnost boja odlika je ovog LED modula. Sa 111111 tačaka po kvadratnom metru LED displeja u boji. Tehnologija dinamičkog skeniranja obezbeđuje čistu i stabilnu slike. Precizan prikaz efekta raznolikih animacija.
Product details:
- Pixel pitch (razmak piksela): 3mm
- Pixel configuration (konfiguracija piksela): 1R1G1B R：G：B=3：6：1
- LED lamp (tip led lampe): Full color
- LED density (gustina): 111111 dot/m2
- Module size (dimenzije modula): 192*192mm
- Module pixel (rezolucija modula): 64*64=4096 dot
Detaljna specifikacija proizvoda
- Pixel Pitch: 3mm
- Pixel Configuration: 1R1G1B R：G：B=3：6：1
- LED Lamp: Full Color
- Density: 111111 dot/m2
- Module Size: 192*192mm
- Module Pixel: 64*64=4096 dot
- Module Weight: 334g
- Module Thickness: 15mm
- Module Power: 16.67W
- Driving Voltage: DC5V
- Module Current: 3.33A
Karakteristike i parametri ekrana
- Standard Cabinet Size: Customization
- Brightness/Adjustment: ≥800cd/㎡ (Level 16- Automatic / Level 100-Manual operation)
- View Angle: ≥140°（Horizontal），≥140°（Vertical）
- Best View Distance: 3m-9m
- Grey Level: ≤65536
- Color Temperature: 8000K
- Frame Frequency: ≥60Hz
- Refresh Rate: ≥3840Hz
- Signal Input: Control Mode Video、VGA/Computer Control，Video Synchronization，Real time Display
- Driving Mode: 1/32Scan
- Driving IC: MBI5153
- Module Quantities/ Sqm: 27
- Display Colors: 16777216
- Continue Working Time :>24（Hrs）
- Screen Lifespan: >100,000（Hrs）
- MTBF: >5000（Hrs）
- Max Power Consumption: 450W/㎡
- Average Power Consumption: 150W/㎡
- Blind Point Rate: ≥3/10,000(Discrete Distribution)
- Control Distance: 100mRepeat Less Cable) 500m(Multi-mode Fiber) 10km(Single-mode Fiber)
- Surface Flatness: Screen Flatness error≤0.5mm，Pixel Pitch error≤0.3mm
- Working Temperature: -10℃～+40℃
- Working Humidity: 10%～80%RH
- Storage Temperature: -20℃～+60℃
- Software Interface: Standard Computer Interface，Compatible with Windows、Unix、Novell
- Protection System: Overheat, Overload,Power Failure,Image Compensation,Gamma Correction
- Working Voltag:e 200~240 V
- Dielectric Strength: 50HZ/1500V（ac RMS）/1min
- Temperature Rise: Metal≤40K，Insulation≤65K after heat balance
- IP Grade: IP43
- Computer Display Mode: 1024*768
- Playing Software: LED Professional Player
